Flat Plate refrigerant/liquid 970PSI test 316L stainless evaporator 36,000BTU

$780.00

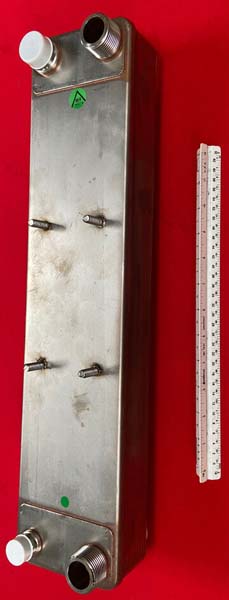

This is a 20 plate evaporator that we use for our 36,000BTU chillers.

All refrigerants except ammonia – 316L stainless with copper nickel or stainless brazing. Typical operating pressure 450-653 psi

Download dP Curve Sheet

Category:

Additional information

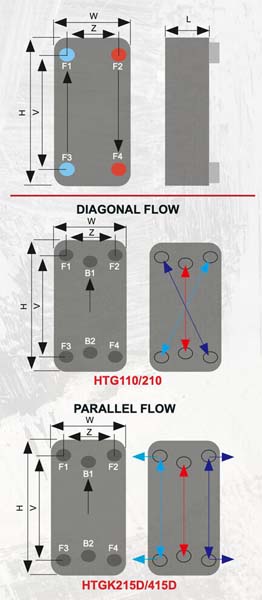

Dimensions 20.7 × 4.72 × 4.5 in

Item Description

This is a 20 plate evaporator that we use for our 36,000BTU chillers.

All refrigerants except ammonia – 316L stainless with copper nickel or stainless brazing

Typical operating pressure 450-653 psi

Test pressure 970 psi

Operating temperature -381F 392F

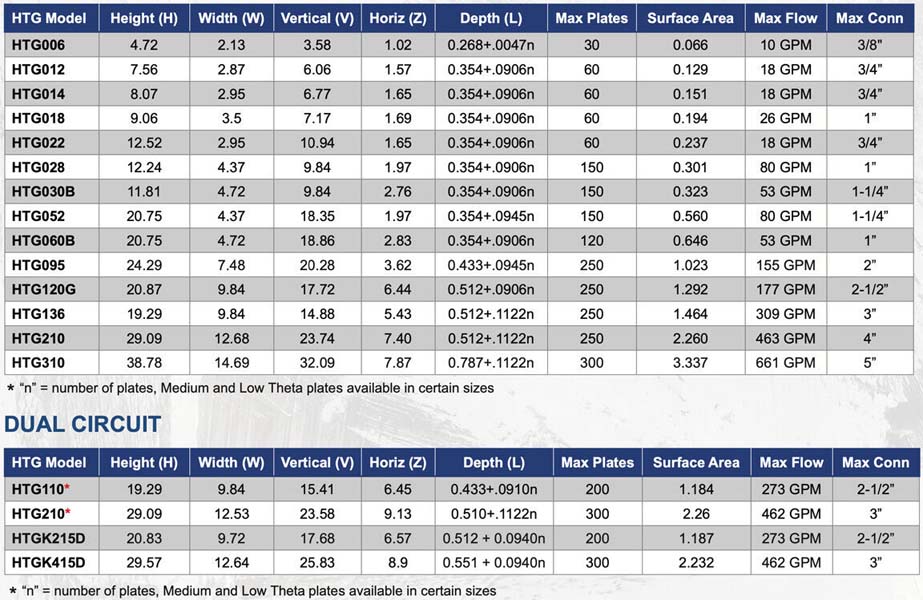

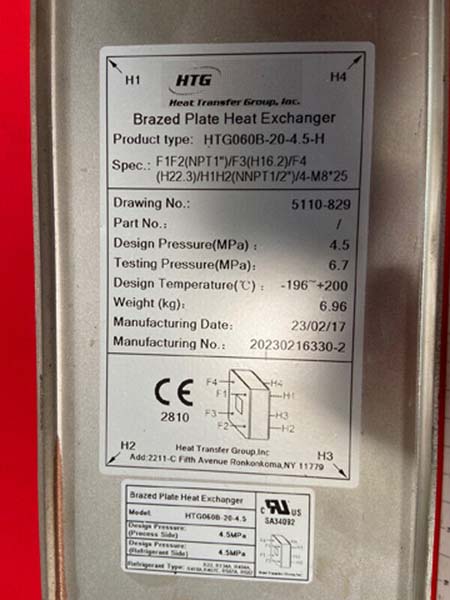

HTGO brazed plate heat exchanger – 60 series

20.7″L x 4.72″W x 4-1/2″

Item Specifics

Condition
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is … Read moreabout the condition

Brand
MPN

HTG
HTG60

Model
HTG60B 20 plate – 36,000BTU +/-

UPC
Does not apply
