Flat Plate evaporator -refrigerant/liquid 970PSI test 316Lstain 360,000BTU HTGKK

$4,500.00

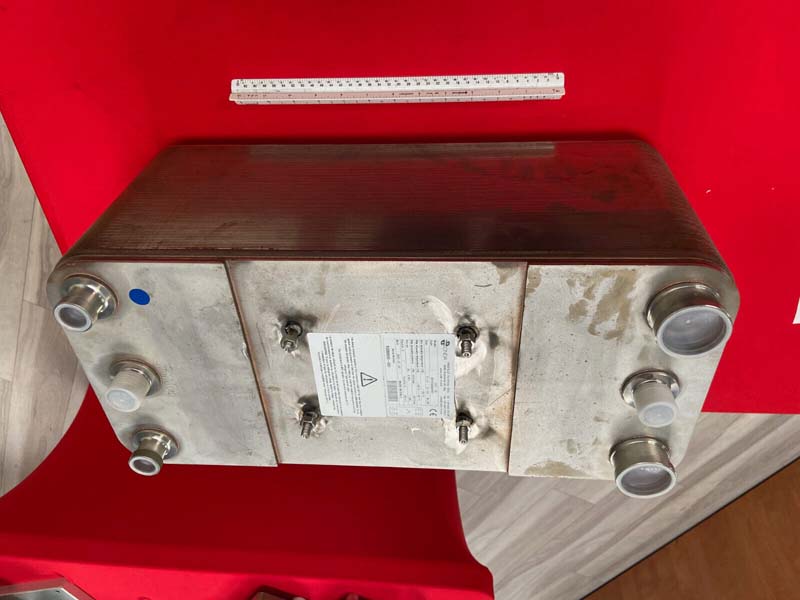

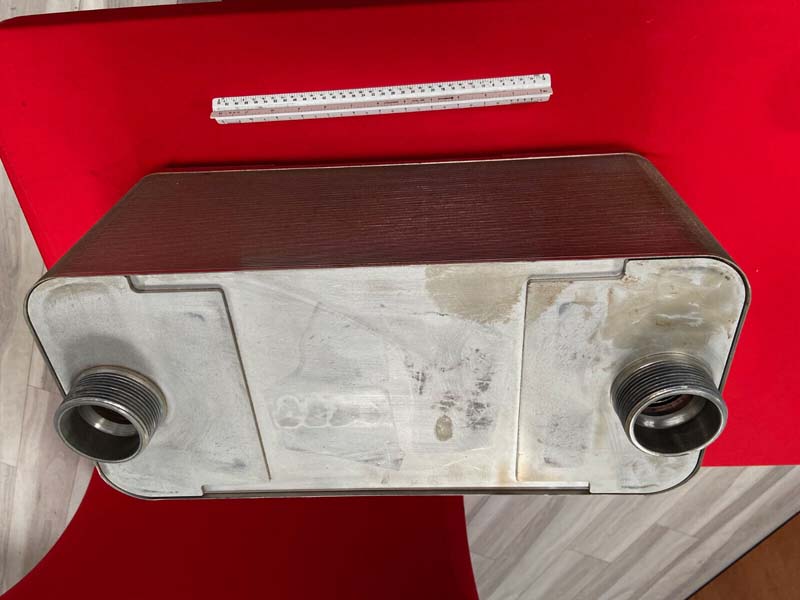

This bifurcated 200 plate evaporator has two refrigerant circuits (two compressors) that we use for our 360,000BTU chillers.

Typical operating pressure 450-653 psi. Test pressure 970 psi. HTKK brazed plate heat exchanger.

Download dP Curve Sheet

Category:

Additional information

Dimensions 21 × 10 × 11 in

Item Description

This bifurcated 200 plate evaporator has two refrigerant circuits (two compressors) that we use for our 360,000BTU chillers.

Typical operating pressure 450-653 psi. Test pressure 970 psi.

HTKK brazed plate heat exchanger

All refrigerants except ammonia – 316L stainless with copper nickel or stainless brazing

Operating temperature -381F 392F

21″L x 10″W x 11″

Item Specifics

Condition
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag.

Brand
MPN

HTG
HTGKK

Model
HTGKK 200 plate – 360,000BTU +/-

UPC
Does not apply
